AutoGrip 3-jaw Wedge Type Self-contained Closed Center Hydraulic Chuck
For Stationary Applications












  • 3-Jaw Stationary chucks with closed center

  • For drilling, milling and other Applications

Model

Eff. Piston area cm2

 Jaw Stroke
(Dia) (mm)		 Max. Pressure
(kgf/cm2)		 weight
(kg)
Extend Retract
VP-304 28 24.9 6.4 3.2 7.4
VP-305 28 24.9 6.4 3.3 10.6
VP-306 63.1 53.5 8.5 3.4 19.8
VP-308 103.4 90.8 8.8 2.8 52.8
VP-310 153.1 133.5 8.8 2.2 54.5

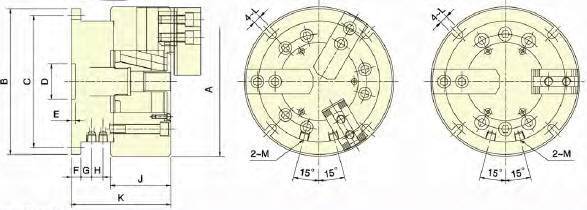

Technical Specfications




Model A B C D
(H8)		 E F G H J K L M
VP-304 110 146 130 30 4.5 12 18 2 52 92 9 RC1/4
VP-305 135 146 130 30 4.5 12 18 2 55 95 9 RC1/4
VP-306 165 178 160 40 5 12 14.5 12.5 74 125 11 RC1/4
VP-308 210 205 186 40 5 14 15 16 85 140 11 RC1/4
VP-310 254 248 225 50 6 17 20 18 89 176 13 RC3/8
