Auto Grip Swing Compensation Power Chucks



Swing compensation power chucks have a unique jaw setup with all 3 jaws aligning to true center. These closed center chucks are sealed against debris, dust and cutting fluids. All internal parts are hardened and precision ground for optimal performance. Swing compensation chucks from Autogrip are an excellent option for casting and forgings.

Power Chuck Options

  • 3 Jaws
  • Jaws Follow True Center
  • Closed Center
  • For Castings & Forgings
  • Sealed To Protect Against Dust & Chips
  • All Internal Parts Are Hardened And Precision Ground
  • 810 Diameter
Model Plunger
Stroke
(mm)
Jaw
Stroke
(Dia.)
(mm)
Chucking
Dia.
(Max.)
(mm)
Chucking
Dia.
(Min.)
(mm)
Max.
Draw Bar
Pull
kN (kgf)
Max.
Clamping
Force
kN (kgf)
Max.
Speed
(rpm)
I

kg-m2

Weight Matching
Cylinder
Compensation
(mm)
3R-08 20 8 65 18 19.6 53.0 2800 .15 27 RK-100N 2

3R-10

25 10 90 22 29.4 67.7 2500 .38 45 RK-125N 2

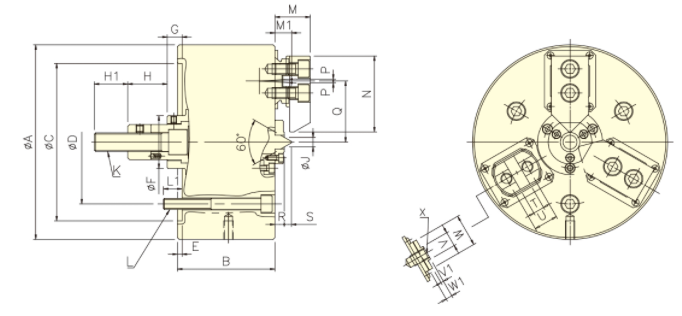

Dimensional Specifications

Model A B C
(H6)
D E F G
(Max.)
G
(Min.)
H H1 J K L L1
3R-08 210 105 170 133.4 5 57 26 6 42.5 36 10.4 M20x2.5 3-M12 20

3R-10

254 115 220 171.4 5.5 64 36.5 11.5 25 39 15 M20x2.5 3-M16 22.5

Model M M1 N P Q Q R S T
(H7)
U V V1 W W1 X
3R-08 38 18 82 2 68 64 10 7.7 12 26 16 3 35 7 M12

3R-10

40 19 102 2.6 82 78 10 11.3 15 32 18 3 40 7 M14



42
